Specifications and Key Features
- Cable ties: Low cost solution to connect mats. For ALL mats.
- Standard 2/4-Way Connectors: For secure and tight interconnecting. for TT HEAVY DUTY
- Steel U-pin: For TT LIGHT & MEDIUM mats, without need of bolts or washers.
- Draghook for mats: Lift or drag mats to position. For ALL mats.
Heavy Duty Cable ties can be a low cost solution to using any of our standard metal or plastic connectors and is often preferred by rental companies and large projects since connectors are often misplaced and never to be found again. On such occasions the investment in cable ties is more sound. Suitable situations are fore example when using a small amount of lightweight machinery, on good to firm ground, or when providing a walkway for pedestrians you may find Heavy Duty Cable ties are the best and easiest connection method. A quick fix for gardeners, rental companies, large projects were there is no time to look after each connector. For outdoor use, UV-resistant and 100% recyclable.

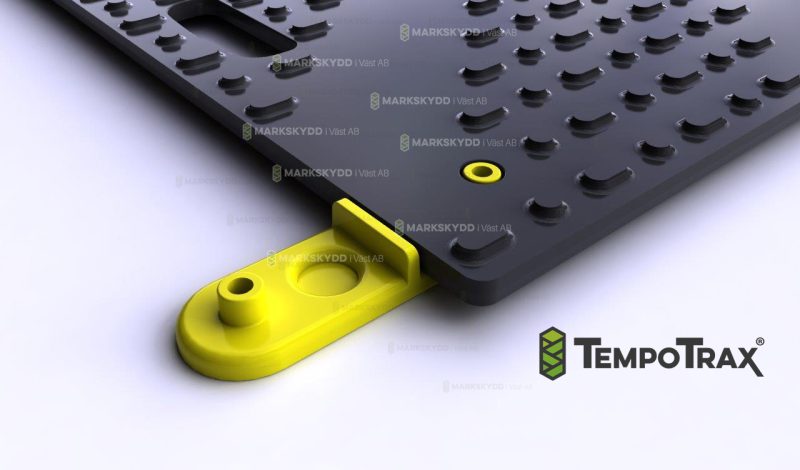

Standard 2/4-Way Connectors:
Standard 2-Way and 4-way Connectors are a great way to connect mats effectively and securely. They can be used to connect the mats together simply and effectively by placing the connector under the corner of each mat, and then connecting via a bolt and washer from the top. All bolts and washers are standard size the therefore you don’t need any specialist equipment to use them. When using mats on a medium to long term basis and when using heavy duty plant and machinery, they also allow a small amount of flex which helps to prevent damage to the mats. Advise connection of the LIGHT, MEDIUM and HEAVY DUTY mats.
Simple 2 way connector/ Steel U-pin
Steel U-Pin Connectors are a great way to connect LIGHT MEDIUM mats fast and effectively without the need of bolts or washers. They can be used either to connect the mats together in each corner via the unique S-Shape design, or they can also be driven into the ground helping to secure them, especially when working on very soft ground or on inclines. Steel U-Pin Fast-Fit Connectors provide good connection when using mats on a short term basis and when using light/medium duty weight vehicles and machinery. They’re made from regular steel ensuring a good lifespan but may rust when used and stored in wet areas.
Draghook ( Mat drag hooks)
Our mats are supplied with pre-drilled holes in each corner to allow for easy connection and fixing. The mats can be easily lifted or dragged into position by using the pre-formed connector holes and specially constructed ‘drag hooks’. Based on a simple J-hook design, drag hooks enable the efficient movement of mats over a distance which can then be placed into the correct spot for a quick and trouble-free installation.
Use the “quick shopping list” button to the right & easily gather your cart.
All prices in Euro (€), ex VAT & shipping costs
*Load capacity is dependent on ground conditions
|Item Code||Name||Quality material||Price per unit (PPU)||PPU Pallet||Unit per Pallet|
|161||Draghook||Metal (may rust!)||6||3||60|
|163||2 way connector simple/U-pin steel||Metal (may rust!)||7||3||60|
|164||2 way connector with screws||HDPE||10||9||60|
|165||4 way connector with screws||HDPE||22||12||60|
|206||Mat Pallet rack Stillage||Up to 40 mats||2400x1200x990mm||Stainless steel||50 kg||1077||915||10|
